9013 782N Contitech 1S270-25C Air Spring Air Bags VKNTECH V782 REPLACE FIRESTONE W01-095-0197 VKNTECH V782

Name: 9013 782N Contitech 1S27025C Air Spring Air Bags VKNTECH V782 REPLACE FIRESTONE W010950197 VKNTECH V782
Brand: VKNTECH
Price: 1.00 USD

China 9013 782N Contitech 1S270-25C Air Spring Air Bags VKNTECH V782 REPLACE FIRESTONE W01-095-0197 VKNTECH V782 wholesale

Brand Name : VKNTECH

Model Number : V782

Certification : IATF16949/ISO9000

Place of Origin : Guangdong, China

MOQ : 10 Pieces

Price : $1.00 - $25.00/Pieces

Supply Ability : 2000000pcs/Year

Packaging Details : CARTON/PALLET

OE NO. : 782N

Warranty : 12 months

Type : by sea/by truck/by air

Car Model : For bus/truck&trailer

Price condition : FOB China

Sample : Available

Material : Imported Natrul Rubber

Operation : Gas-filled

Brand : VKNTECH or customized

Service offered : OEM

Suspension system : Air Spring Suspension

Type of Goods : Air Spring/Air bags/Air Ballons

Package : Standard packing or customized

Payment term : T/T&L/C

Port : Guangzhou

Contact Now

Truck air suspension bellows / Firestone air suspension W010950197 / Contitech air suspension 782N

Product Description

CROSS REFERENCE		OEM REFERENCE
CF GOMMA	1S 285-25		93195986
CF GOMMA 2	97555		4716989
CONTITECH	782 N		4703972
DUNLOP FR	D11S02		4703904
FIRESTONE	1R1A415285	MERCEDES (OEM)	A382 327 7201
FIRESTONE 2	W01 095 0197	French car V.I	5000954176
GOODYEAR	556 0 3 8013	WABCO	896 130 124 4
	9013
TAURUS	B 124

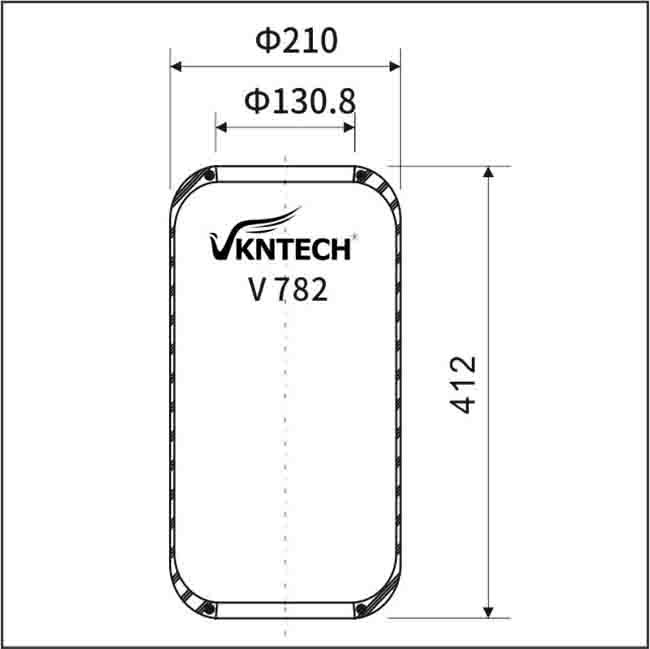

Technical Data

9013 782N Contitech 1S270-25C Air Spring Air Bags VKNTECH V782 REPLACE FIRESTONE W01-095-0197 VKNTECH V782

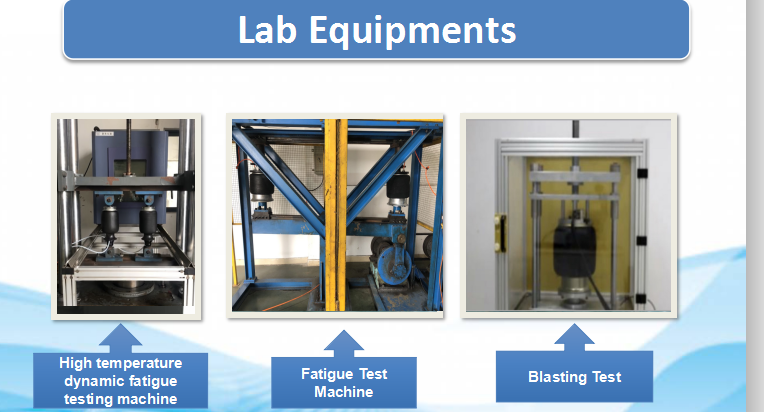

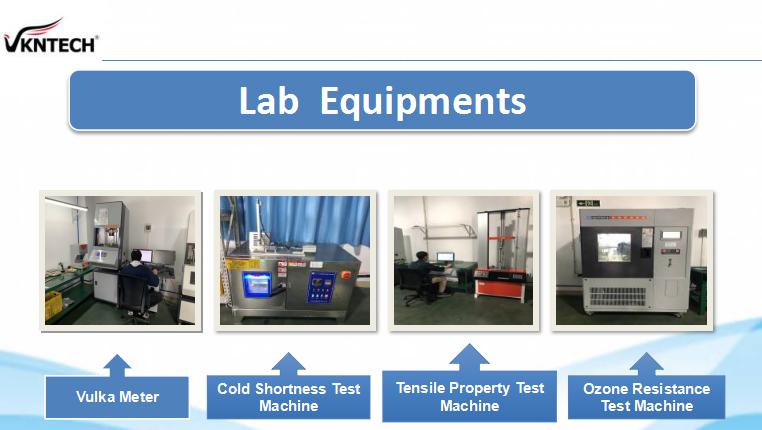

Our factory

9013 782N Contitech 1S270-25C Air Spring Air Bags VKNTECH V782 REPLACE FIRESTONE W01-095-0197 VKNTECH V782

Warning and Tips

Important tips to remember when installing a new unit

Check levelling valve, linkage and transmission parts for wear and damage and if necessary replace the damaged parts.

Check that the shock absorber for leakages and take a shock absorber test. A defective shock absorber must be replaced.

Once the air lines are disconnected, check their entire length for cracks or other damage. Replace worn parts.

With the air spring removed, other parts of the air suspension become more accessible. Check for wear or damage of the frame hangers, trailing arm bushings, torque rods, the trailing arms and the air spring mounts. When it is necessary, also replace parts.

Check bearing for air spring bellow for external damage, deformation, sharp edges and correct fastening.

Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to the suspension.

Always use new attaching bolts for the installation and observe the tightening torques. Never use old bolts, because these can fall out.

Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage should move from the neutral position up to the intake position. This lets air into the springs, which brings the arm back to the neutral position. This lets air into the springs, which brings the arm back to the neutral position. That opens the exhaust valve, allowing air to escape until the arm returns to the neutral position. Then check the driving level.
